Especificações:

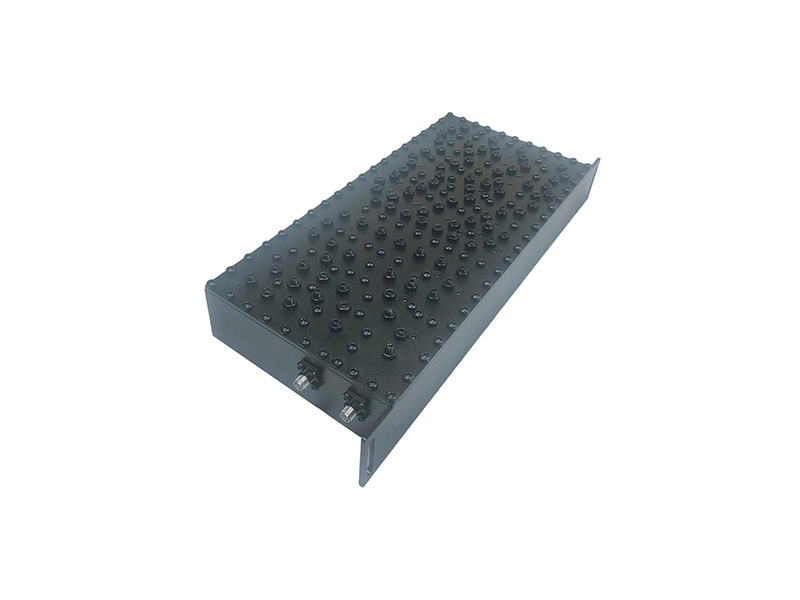

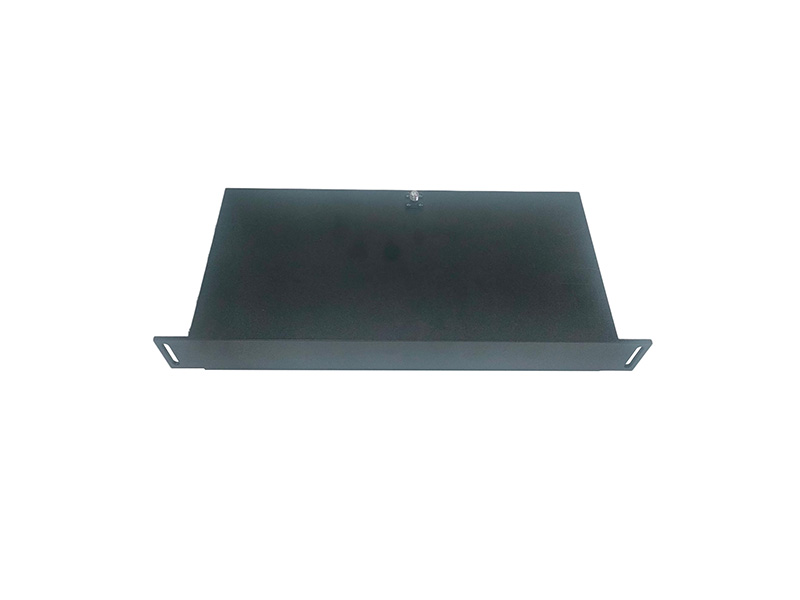

Parte Não. | HT-Disco rígido-0821-AME-F | |||||
Item | Banda 8-Rx | Banda 8-Tx | Banda 3-Rx | Banda 3-Tx | Banda 1-Rx | Banda 1-Tx |
Frequência (MHz) | 890-915 | 935-960 | 1710-1760 | 1805-1855 | 1920-1980 | 2110-2170 |
Largura de banda (MHz) | 25 | 25 | 50 | 50 | 60 | 60 |
Perda de inserção | ≤1.5dB | ≤1.5dB | ≤1.5dB | ≤1.5dB | ≤1.2dB | ≤ 1,0 dB |
Ondulação em banda | ≤ 1,0 dB | ≤ 1,0 dB | ≤ 1,0 dB | ≤ 1,0 dB | ≤0.6dB | ≤0.5dB |
Cruzamento supressão (megahertz) | ≥45dB @925 | ≥45dB @1782.5 | ≥45dB @2045 | |||
| ≥45@1887.5 | ≥45@1887.5 | |||||
Isolamento (dB) | ≥80@935-960 | ≥80@890-915 | ≥80@1805-1855 | ≥80@1710-1760 | ≥80@2110-2170 | ≥80@1920-1980 |
≥90@1710-1880MHz | ≥90@1710-1880MHz | ≥90@890-960MHz | ||||
≥90@1920-2170MHz | ≥90@1920-2170MHz | ≥90@1710-1855MHz | ||||
VSWR | ≤1.25 | |||||
Potência de entrada (W) | 50 W/por porta (potência média) | |||||
Cor | Preto | |||||
Temperatura de operação | -20°C a +65°C | |||||
Temperatura de armazenamento | -40°C a +85°C | |||||
Relativo humidade | 5% - 95% | |||||
Conectores | SMA-F | |||||
Dimensão, mm | 255*123*47 | |||||
Desenho do esboço:
Temos orgulho do nosso serviço ao cliente e pretendemos fornecer suporte 5 estrelas. Se você tiver alguma dúvida sobre nossos produtos, sinta-se à vontade para ligar ou enviar um e-mail.
Ligue 24H / 7Days
+86 198-2655-1792A duplexer is a three-port device that enables simultaneous transmission and reception of signals using a single antenna. It isolates the transmitter and receiver to prevent interference, allowing both to operate on different frequency bands. Applications Duplexers are widely used in: Base Stations: Facilitating communication in cellular networks. Repeater Systems: Enhancing signal coverage in large areas. Our Advantages High Performance: Our duplexers offer low insertion loss, high isolation, and excellent durability, ensuring reliable performance in demanding environments. Customization: We provide tailored solutions to meet specific frequency requirements and operational needs.
